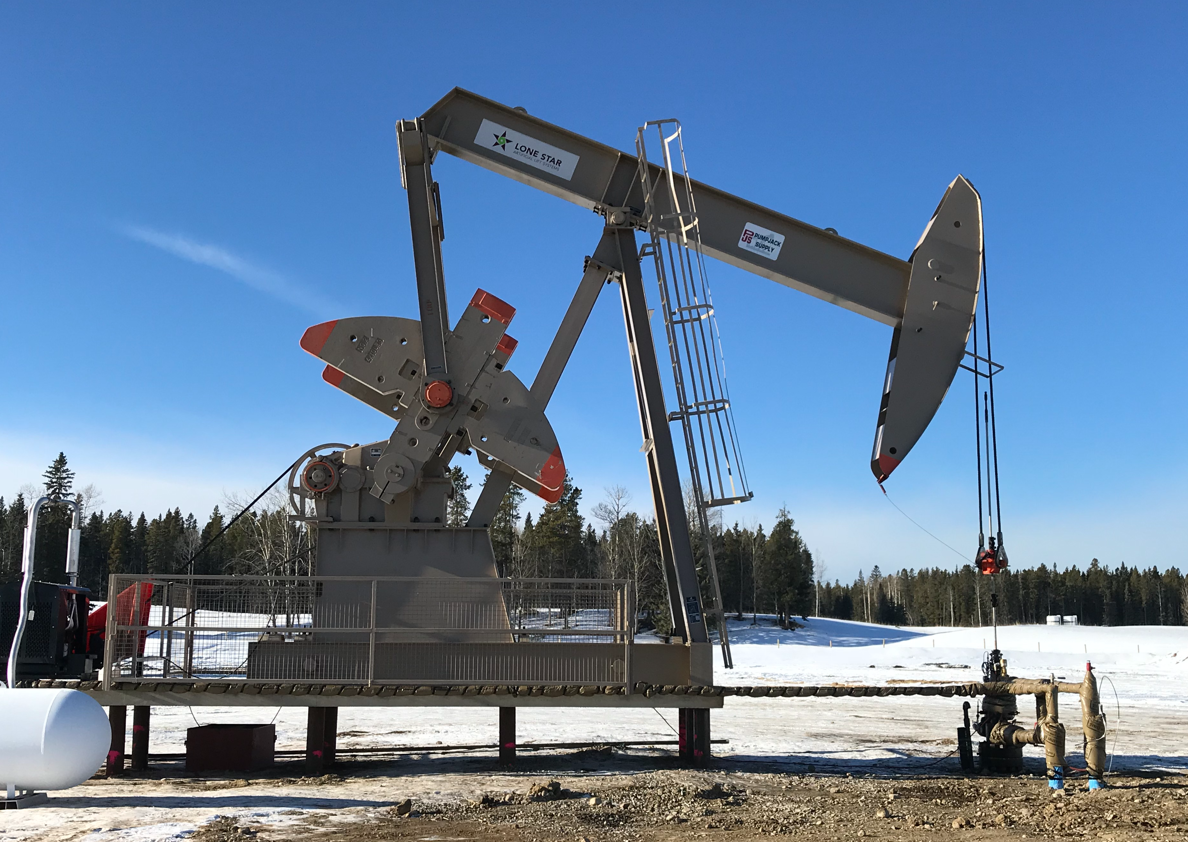

①API C系列抽油机是一种常规型游梁式抽油机，采用曲柄平衡方式，它是油田有杆采油作业中最常见、应用范围最广的一种地面动力设备。
②产品符合API Spec 11E及石油行业GB/T29021-2012相关抽油机标准。
型号 | Rated torque of reducer 减速器额定扭矩 in,-lb | Rated suspended point load 额定悬点载荷 lb | The largest stroke 最大冲程 in |
C1280-427-240 | 1280000 | 42700 | 240 |
C1280-427-216 | 1280000 | 42700 | 216 |
C1280-427-192 | 1280000 | 42700 | 192 |
C912-427-192 | 912000 | 42700 | 192 |
C912-365-168 | 912000 | 36500 | 168 |
C912-427-144 | 912000 | 42700 | 144 |
C640-365-192 | 640000 | 36500 | 192 |
C640-305-168 | 640000 | 30500 | 168 |
C640-365-144 | 640000 | 36500 | 144 |
C456-305-144 | 456000 | 30500 | 144 |
C456-365-120 | 456000 | 36500 | 120 |
C320-256-144 | 320000 | 25600 | 144 |
C320-256-120 | 320000 | 25600 | 120 |
C320-305-100 | 320000 | 30500 | 100 |
C320-213-86 | 320000 | 21300 | 86 |
C228-213-120 | 228000 | 21300 | 120 |
C228-173-100 | 228000 | 17300 | 100 |
C228-246-86 | 228000 | 24600 | 86 |
C228-200-74 | 228000 | 20000 | 74 |
C160-173-86 | 160000 | 17300 | 86 |
C160-200-74 | 160000 | 20000 | 74 |
C114-119-86 | 114000 | 11900 | 86 |
C114-143-74 | 114000 | 14300 | 74 |
C114-173-64 | 114000 | 17300 | 64 |
C114-133-54 | 114000 | 13300 | 54 |
C80-119-64 | 80000 | 11900 | 64 |
C80-133-54 | 80000 | 13300 | 54 |
C57-76-54 | 57000 | 7600 | 54 |
C57-109-48 | 57000 | 10900 | 48 |
C40-89-42 | 40000 | 8900 | 42 |
